Product Summary

Silicon Power Transistor.It utilizes Perforated Emitter technology and are specifically designed for high power audio output, disk head positioners and linear applications.

Parametrics

MJ21194G absolute maximum ratings: (1)Collector-Emitter Voltage:250 Vdc; (2)Collector-Base Voltage:400 Vdc; (3)Emitter-Base Voltage:5 Vdc; (4)Collector-Emitter Voltage -1.5V:400 Vdc; (5)Collector Current:Continuous:16Adc, Peak:30Adc; (6)Base Current - Continuous:5 Adc; (7)Total Power Dissipation @ TC = 25℃:250W; (8)Derate Above 25℃:1.43W/℃; (9)Operating and Storage Junction Temperature Range:-65 to +200℃.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

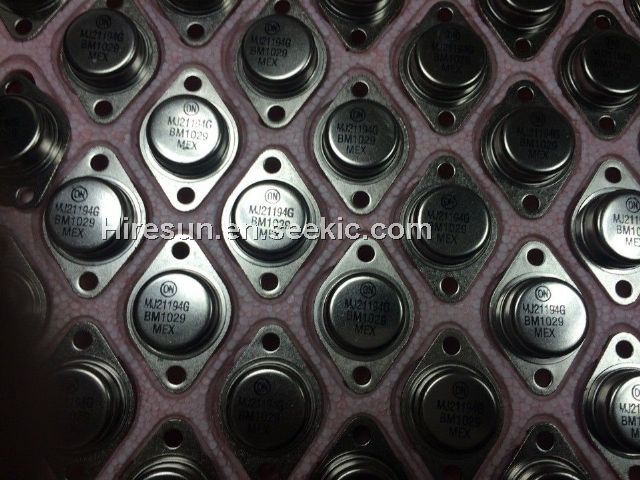

MJ21194G
MJ21194G
ON Semiconductor
Transistors Bipolar (BJT) 16A 250V 250W NPN
Data Sheet
0-1: $2.44
1-25: $2.00
25-100: $1.81
100-500: $1.62
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MJ21193
MJ21193
ON Semiconductor
Transistors Bipolar (BJT) 16A 250V 250W PNP
Data Sheet
Negotiable
MJ21193G
MJ21193G
ON Semiconductor
Transistors Bipolar (BJT) 16A 250V 250W PNP
Data Sheet
0-1: $2.44
1-25: $2.13
25-100: $1.72
100-500: $1.42
MJ21194G
MJ21194G
ON Semiconductor
Transistors Bipolar (BJT) 16A 250V 250W NPN
Data Sheet
0-1: $2.44
1-25: $2.00
25-100: $1.81
100-500: $1.62
MJ21195
MJ21195
ON Semiconductor
Transistors Bipolar (BJT) 16A 250V 250W PNP
Data Sheet
Negotiable
MJ21195G
MJ21195G
ON Semiconductor
Transistors Bipolar (BJT) 16A 250V 250W PNP
Data Sheet
0-1: $2.10
1-25: $1.87
25-100: $1.47
100-500: $1.22
MJ21194
MJ21194
ON Semiconductor
Transistors Bipolar (BJT) 16A 250V 250W NPN
Data Sheet
Negotiable
